D5CLRA

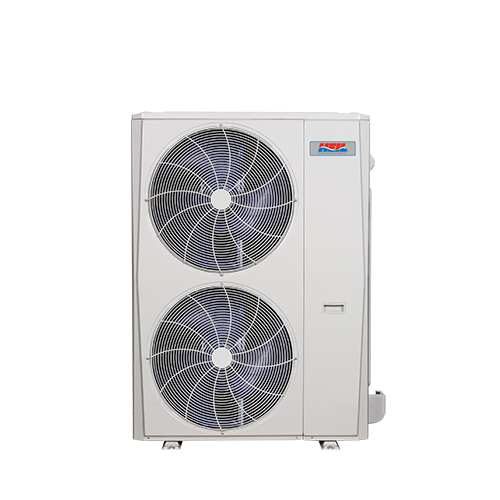

This ductless heat pump is a powerhouse unit with up to 20 SEER2 cooling and 10.4 HSPF2 heating efficiency. Features like Refrigerant Leakage Protection and Condenser High-Temperature Protection make this unit smart as well as efficient.

Icon of a question mark
Icon of a question mark
  • Inverter Compressor
  • Up to 20 SEER2 cooling efficiency
  • Up to 10.4 HSPF2 heating efficiency
  • Available in 208/230V
  • Sizes: 36 / 48 / 58
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 62.5 dB(A)1
  • Anti-corrosive fin coating
  • R-454B refrigerant continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant.
  • 10-Year Parts Limited Warranty2
  • 5-Year No Hassle Replacement™ Limited Warranty3
  • Up to 20 SEER2
  • Up to 10.2 EER2
  • Up to 10.4 HSPF2
  • Outdoor sound: as low as 62.5 decibels1
  • Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range -13°~75° F (-25°~24° C)
  • Piping length: Up to 246 ft. (75m)
  • Inverter Compressor
  • 3.0 – 4.8 Ton
  • 208/230V
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
  • Lower global warming potential R-454B refrigerant
  • Up to 20 SEER2
  • Up to 10.2 EER2
  • Up to 10.4 HSPF2
Cooling Efficiency Cooling Efficiency help_outline
Up to 20 SEER2
Heating Efficiency Heating Efficiency help_outline
Up to 10.4 HSPF2

1Quietest size within each model group during low fan-speed operation

2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

3No Hassle Replacement™ Limited Warranty: If compressor, coil or heat exchanger fails due to defect during the applicable No Hassle Replacement limited warranty time period, a one-time replacement with a comparable unit will be provided.
